-Post pics of your computer-

[caveman-jim]

@aviphysics - very nice!

@cd -

[aviphysics]

Here's a pic of my 5870's on water, Just got done yesterday, I have Sapphire and want to clock them to 1000, on core, what modification do I use in the MSI Afterburner etc.?
Uploaded with ImageShack.us

What your radiator look like? Just curious.

[Dungeoncrawler]

So I have an area on top of my case designed for a radiator. However, do I have any hardware options for this spot other than three individual 120mm fans? Any type of fan-pack that is one unit consisting of the 3 fans?

[Greasy]

So I have an area on top of my case designed for a radiator. However, do I have any hardware options for this spot other than three individual 120mm fans? Any type of fan-pack that is one unit consisting of the 3 fans?

Just put a 3x120 rad up there, then add the rest of the water kit. You will then really see the beauty of that case. I want one really really bad, but I can't justify the cost considering how much I spent on this damn lian li.

[aviphysics]

You get Diet Rite for the first year.

As far as the screen pic goes, I used it for promo shots for my review on the Eyefinity6, and it was the most convenient pic I had for a 5760x2160 desktop - 12.5MP wallpapers are hard to come by, and the promo pic AMD sent me only needed the canvas size extending horizontally a little to make it fit.

Hey Caveman,

I have a beautiful 12531x7519 picture of Burney Falls in CA I took a few years ago. Definetly one of my best works. Its made from about 50 8MP pictures stitched together. The CPU time alone took 2 days on my P4. I currently have a 4ft by 6ft poster of it in my office covering what used to be a window before they filled in the courtyard. I challenge anyone to find a seem in it. Let me know and I can send you a copy (not for redistribution pls). Consider it a thanks for being generaly helpful Edit: I found a copy. Here is a low res version.

[caveman-jim]

Wow, thats awesome! Yes, please send me a hi-res version and I'll post up pics of it as my Eyefinity 6 desktop

caveman-jim at rage3d dot com

[DiaperJe|\|i3]

Got a new desk to hold my Eyefinity6 setup. $30 from local thrift store, no laminated particle board here - solid and sturdy. Some joints had sprung when we got it, so I replaced some screws and added some brackets to beef it up. 60" wide and 30" deep. The computer tower hutch isn't big enough for a HAF so I put my UPS there instead.

[IG]http://img706.imageshack.us/img706/7930/eyefinity6desk.jpg[/IMG]

XFX x58i / Core i7 920 @ 4Ghz (4.2 Turbo) w/CoolIT Domino ALC / G.Skill RipJaws DDR3 @ 1200 8-8-8-24 1T @1.5v 3x2GB / Intel X25-E / Seagate 7200.12 1TB / AMD ATI Radeon HD 5870 2GB Eyefinity 6 / Corsair TX 850 / Cooler Master HAF 932 / Windows 7 Ultimate x64

I think my e-penis turned into a e-vagina

[DiaperJe|\|i3]

Just finished a new computer desk. My father was very nice and did most of the actual work . It's designed to hide as much of the cable clutter as possible. There is a channel in the back that allows cables to be routed wherever. The drawers are crazy deep and can have cables routed into them as well. The venting seems to be sufficient. CoreTemp did not pick up any notable rise in temperature. I am going to add a pair of fans to the back just to make sure.

[IG]http://lh4.ggpht.com/_gN77P_NrVf0/S9jz0Y9CqdI/AAAAAAAAdhY/LHgEv3CmSVU/IMG_8779.JPG[/IMG]

[IG]http://lh5.ggpht.com/_gN77P_NrVf0/S9jz1Oy4c3I/AAAAAAAAdhg/yzp15dHL7Zc/s800/IMG_8782.JPG[/IMG]

[IG]http://lh5.ggpht.com/_gN77P_NrVf0/S9jz14wxtBI/AAAAAAAAdho/awyza50zGsE/s800/IMG_8784.JPG[/IMG]

Thats perfect. I love it!

[aviphysics]

Got a new desk to hold my Eyefinity6 setup. $30 from local thrift store, no laminated particle board here - solid and sturdy. Some joints had sprung when we got it, so I replaced some screws and added some brackets to beef it up. 60" wide and 30" deep. The computer tower hutch isn't big enough for a HAF so I put my UPS there instead.

http://img706.imageshack.us/img706/7930/eyefinity6desk.jpg

XFX x58i / Core i7 920 @ 4Ghz (4.2 Turbo) w/CoolIT Domino ALC / G.Skill RipJaws DDR3 @ 1200 8-8-8-24 1T @1.5v 3x2GB / Intel X25-E / Seagate 7200.12 1TB / AMD ATI Radeon HD 5870 2GB Eyefinity 6 / Corsair TX 850 / Cooler Master HAF 932 / Windows 7 Ultimate x64

Looks like you are going to need an even bigger desk soon if you want to stay on the cutting edge.

http://www.engadget.com/2010/04/30/powercolor-hd5970-eyefinity-12-makes-six-screens-yesterdays-new/

[ScottDoom]

Looks like you are going to need an even bigger desk soon if you want to stay on the cutting edge.


http://www.engadget.com/2010/04/30/p...esterdays-new/

OMGLOL



That is ridiculous! I mean, it already was ridiculous. Now it's just unreal.

[caveman-jim]

Yeah, I'm trying to figure out what the point of that is - you can't make single Eyefinity groups larger than 8k pixels on any axis, and you can't currently do multi-GPU Eyefinity groups (groups spanning displays attached to multiple cards), so this hints at there being interesting announcements coming @ Computex in June, possibly.

[Treeckcold57]

OMGLOL



That is ridiculous! I mean, it already was ridiculous. Now it's just unreal.

That isn't for gamers. It is more likely for business and professional users.

[aviphysics]

That isn't for gamers. It is more likely for business and professional users.

Joykill

[caveman-jim]

That isn't for gamers. It is more likely for business and professional users.

If it were a Fire Pro then I'd agree with you. However, there are no dual-GPU Fire Pro cards. So it's a consumer card, and business and professional users don't buy consumer cards, they buy professional workstation cards. Fire Pro.

[Dungeoncrawler]

Just put a 3x120 rad up there, then add the rest of the water kit. You will then really see the beauty of that case. I want one really really bad, but I can't justify the cost considering how much I spent on this damn lian li.

So I can use a rad for air-cooling if I decide not to go liquid? Those things have fan's inside of them right? And, does the unit power itself? Again, I know nothing about this stuff.

[caveman-jim]

Use a water filled radiator for air cooling?

[Treeckcold57]

Use a water filled radiator for air cooling?

Uhh...I have no clue. But it doesn't make a sense. All I know is the heat pipe that has the fluid transfers heat.

[Soong]

So I can use a rad for air-cooling if I decide not to go liquid? Those things have fan's inside of them right? And, does the unit power itself? Again, I know nothing about this stuff.

No. Water needs to be going through the radiator. It has to be going through the water block too (if you're wondering). You also need a pump, tubing, hose clamps, and even fans to move air through the radiator's fins.

[Ristogod]

If it were a Fire Pro then I'd agree with you. However, there are no dual-GPU Fire Pro cards. So it's a consumer card, and business and professional users don't buy consumer cards, they buy professional workstation cards. Fire Pro.

Depends what the business is.

[Dungeoncrawler]

Use a water filled radiator for air cooling?

It has fans in it right? Thought maybe you could leave the water out and just use the three fans as a mounted air cooling unit. However, never really seen one up-close (rad).

[caveman-jim]

Oh I see. I guess you could but it wouldn't be very effective as the radiator would block airflow.

[the_mup]

Crappy cell phone pic of the innards....still needs work, but its getting there.

[aviphysics]

Crappy cell phone pic of the innards....still needs work, but its getting there.
http://img62.imageshack.us/img62/1863/img030bx.jpg

My intuition is that it would be better to plum your GPUs in parallel. Is this not the case?

[the_mup]

That has been suggested to me before, but after looking around...there are various opinions on it.

Some seem to have great results, while others have worse temps. It just didn't seem to make sense to me. I still have components in the loop that need to be replaced for better components, so I think that would be minimal...

I just can't imagine how that would flow better, it seems like one of the cards would get all of the flow while the other just recycled it own fluid.

[aviphysics]

That has been suggested to me before, but after looking around...there are various opinions on it.

Some seem to have great results, while others have worse temps. It just didn't seem to make sense to me. I still have components in the loop that need to be replaced for better components, so I think that would be minimal...

I just can't imagine how that would flow better, it seems like one of the cards would get all of the flow while the other just recycled it own fluid.

Think about it in terms of pressure. If both parts have the same impedance then they should both see the same flow if they are connected in parallel. The total flow may even be higher as the total impedance is also lower compared to both blocks plumbed in series (Z=R/2 vs Z=2R respectively). Even if the total flow was the same for both configurations I still believe this system will give the best cooling. Now that being said I would not plum to different blocks in parallel as that could lead to insufficient flow if one block is of significantly greater impedance .

The main downside is that in the event of a clog flow could stop flowing through one and you may not notice as the other block would act like a bypass and the total flow would not stop. If this happened and they were both in series then there would be a pressure build up that would help though not entirely counteract the effects of the blockage. If the blockage is bad enough and they are in series your flow could stop entirely which you would notice very quickly. I would not expect this to be a problem for a properly maintained system as you should have something to keep stuff from growing in the water and the water should be free of junk.

If you flow is high enough then the fluid may only suffer a tiny change in temperature going from one to the other and it won't matter which configuration you have.

For reference my main background in water cooling comes from working on the designing of a cooling upgrade for the DIII-D national fusion facility. It's a very different scale but is fundamentally the same. All our systems were connected in parallel and this worked very well though obviously we used much more instrumentation and regulation then inside a PC. The piece de la resistance was 6 1MW gyrotrons (big microwave generators) that each dumped 2MW of power into our cooling system.

Now where do I have those pictures...
Here we go. I am the dorky guy I on the right, my daughter is in the middle (same girl from the picture of the of my desk) and the lovely lady is my wife. The six monoliths behind us are gyrotrons that we had finished just in time for family day. Easily the funnest job ever.

[the_mup]

Great advice, thank you.

I eventually plan to upgrade the pump, radiator, and reservoir. I will certainly reference this again when it comes time for the next upgrade.

[war_child]

My first ever PC mod

[acroig]

Now where do I have those pictures...
Here we go. I am the dorky guy I on the right, my daughter is in the middle (same girl from the picture of the of my desk) and the lovely lady is my wife.

Lovely family, congrats.

[aviphysics]

My first ever PC mod

http://i955.photobucket.com/albums/a...t/IMG_4210.jpg

Very clean and that is a hell of a PhysX card

[Trunks0]

Been awhile since I posted a shot of the exterior. Behold my meager monolith


I'll post a better interior shot when I get my HD 5770 tomorrow

[caveman-jim]

That's Sonata II or III?

[Treeckcold57]

I will upload some pics of my new gaming rig soon. But hey, I almost done building my gaming rig. Now, all i need is a new hard drive and a DVD drive.

[Trunks0]

That's Sonata II or III?

Sonata II. I have really liked it all these years, but I really want to replace it since GFX cards are getting crazy long again.

[Treeckcold57]

Yes. I know I know...this isn't a finished building rig. I still need to get a new hard drive and a dvd drive, and then I will finish it.

[caveman-jim]

looking good Treeck!

[Treeckcold57]

looking good Treeck!

Thanks a bunch!

[ExoTic]

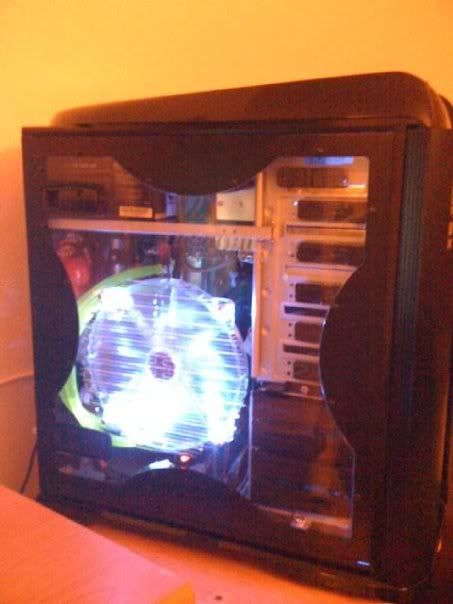

My Previous System Thermal Take Armor +MX

I was using Thermal Take Big Water Liquid Cooling wit 4870x2 in Quadfire Set Up.

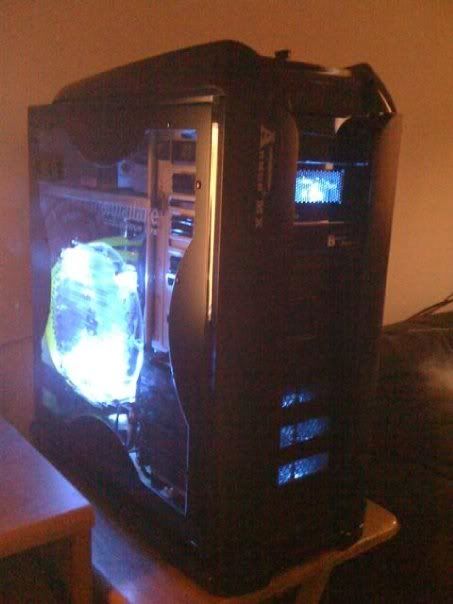

Sides View

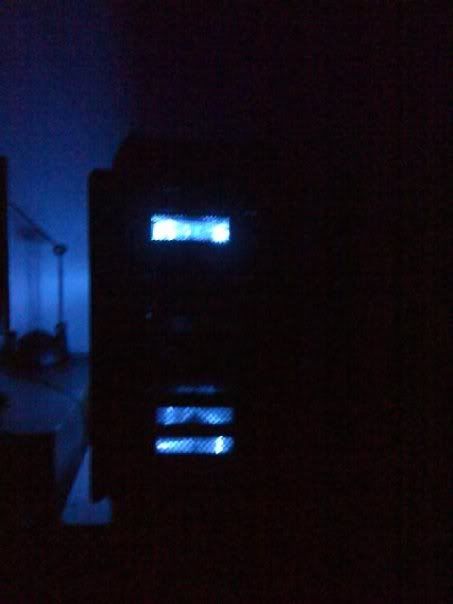

Lights OUT!!

Frontal SHots!

Watcha LoOkin AT?

Well dis system is long gone i dont have a single piece of it nemore.

[Trunks0]

And the inside of my Sonta 2 with HD 5770. It's amazing just how much shorter it is than the 8800GT it replaced. However I had to move my TV Tuner up to the top PCI-E 1x slot above the video card. The fan of the HD 5770 is taller and was touching the tuner .


and the beast that guards the interior...

look closely...

[The Luggage]

Decided to switch over to a Corsair Obsidian 800d, my Antec P160 is getting old, and it looked like a rat's nest inside lol.

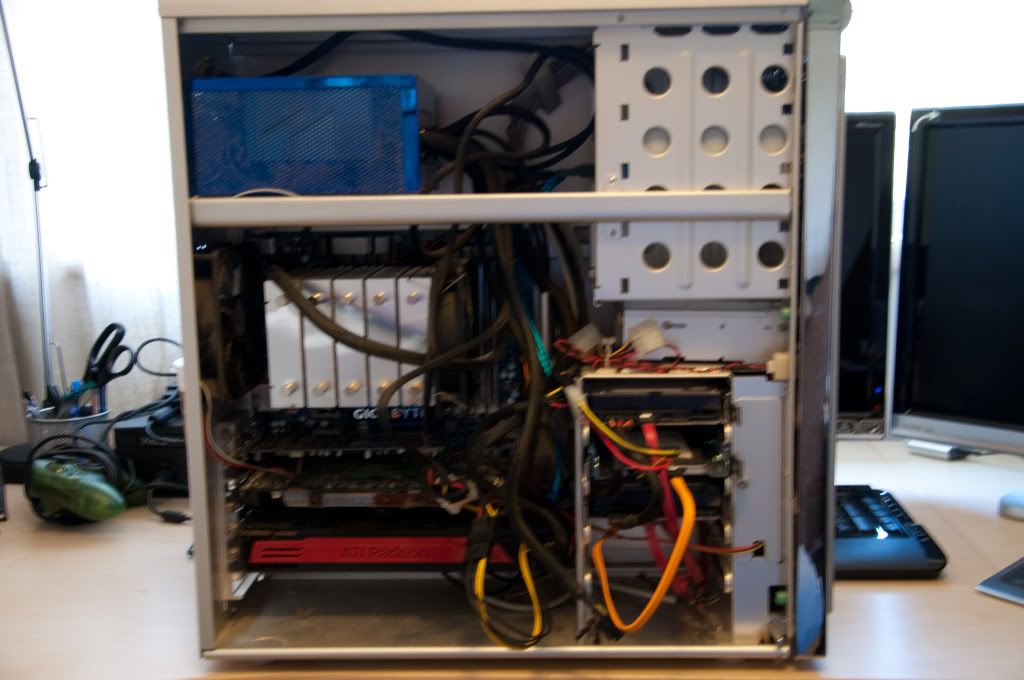

Went from this (excuse the blurry picture):

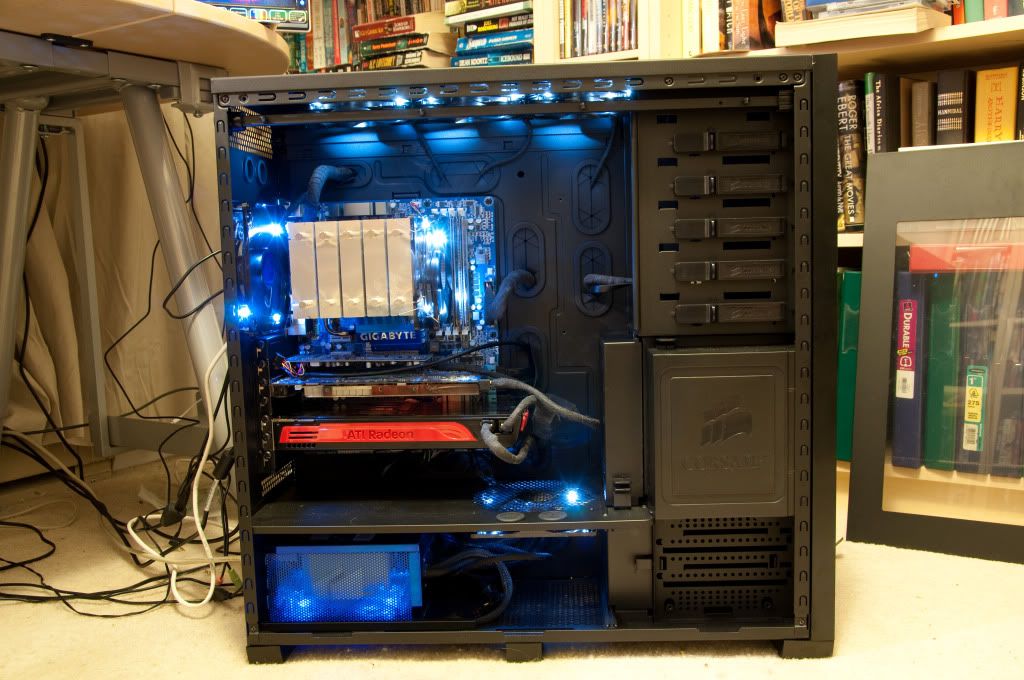

To this:

[Dungeoncrawler]

Decided to switch over to a Corsair Obsidian 800d, my Antec P160 is getting old, and it looked like a rat's nest inside lol.

Went from this (excuse the blurry picture):


To this:

Great taste in cases my friend
