-Post pics of your computer-

[snilloconator]

My RIG! or Just click my sig!

[MFAC]

Nice case and setup mate! ^_^

[Greasy]

snilloconator,

Where do you have you're radiator and pump? I've got a shark too, but it's not nearly as clean on the inside.

[snilloconator]

TY! Guys! I still need some more work done but out of money right now, mama ok new processor soooo....

As far as the rad well it's kind of cheezy! I'll hit you with a pic! I'll explain why thoug... I had the rad originally bolted on the back of the case having the 120 cooling it with air from within the case (NOT GOOD). I was showing major high temps. So I rearranged and bolted this thing to the side of my case. It gave me better flow for the hot air trying to leave the case pluse it was no longer dragging it across the rad! So I slapped an additional blue led 120 on top of it and it came out ok! For now... Plus the fan acts as a light when fraggin late at night!

[TRD Supra]

nice. what size is you LCD? is that a 7950 GX2? is it ok to have you watercooling running by you hot PSU?

[snilloconator]

Srry I forgot to add those to my sig. Monitor is 24" Dell and the vid card is 7950GX2. Thanks Dude!

[grog]

New desk - New pictures!

Well I got a new desk so I thought I would post the new computer look in our computer room.

Still need to do something about the wires.

My desk and system








* Monitor: Dell UltraSharp 2405FPW 24" LCD
* Motherboard: ASUS A8R-MVP ATX AMD CrossFire Motherboard - BIOS 309
* CPU: AMD Athlon 64 X2 4400+ 1GHz FSB Socket 939 Dual Core
* Memory: CORSAIR XMS 2GB (2 x 1GB) 184-Pin DDR SDRAM Unbuffered DDR 400 (PC 3200) TWINX2048-3200C2PRO
* Video: ATI All-in-Wonder® X1800 XL 256MB PCI Express®
* ATI HDTV Wonder Remote Control Edition PCI TV Tuner
* Sound: Creative Sound Blaster X-Fi Elite Pro Sound Card
* Ethernet: Onboard Marvell 88E8001 10/100/1000Base-T Gigabit
* Hard Disk-1&2: Seagate Barracuda 7200.9 ST3300622AS 300GB 7200 RPM SATA 3.0Gb/s x 2 (total 600GB) RAID-0
* Hard Disk-3&4: Maxtor 6Y120M0 120GB 7200 RPM SATA 1.5Gb/s x 2 (total 240GB) RAID-0
* Hard Disk-5: Seagate Barracuda 7200.9 ST3160812A 160GB 7200 RPM IDE Ultra ATA100
* DVD-R/RW: SONY White IDE DVD Burner Model DRU810A
* DVD-R/RW: SONY Silver USB 2.0/i.LINK External DVD Burner Model DRX810UL
* CASE: Thermaltake Tai-Chi VB5001SNA Black/ Silver Computer Case with liquid cooling
* Thermaltake A2309 iCage 5.25" bay (2 units)
* LCD-TEMP: AeroCool GateWatch-SV Silver GateWatch with LCD display
* PSU: PC Power & Cooling 510 SLI-PFC 510W
* UPS: APC Back-UPS XS 1000 UPS, 1000 VA, 600 Watts
* OS: Microsoft Windows XP Media Center 2005 Rollup 2
* OS: Microsoft Windows XP Professional x64 Edition
* OS: Fedora Core 5 - x86_64 - Kernel 2.6.17.3
* Speakers: Klipsch ProMedia Ultra 5.1

My Wife's desk and system


* Monitor: Dell UltraSharp 20.1" 2001FP LCD
* Motherboard: ASUS A8R-MVP ATX AMD CrossFire Motherboard - BIOS 309
* CPU: AMD Athlon 64 X2 4400+ 1GHz FSB Socket 939 Dual Core
* Memory: CORSAIR XMS 2GB (2 x 1GB) 184-Pin DDR SDRAM Unbuffered DDR 400 (PC 3200) TWINX2048-3200C2PRO
* Video: ATI All-in-Wonder® X1800 XL 256MB PCI Express®
* ATI HDTV Wonder Remote Control Edition PCI TV Tuner
* Sound: Creative Sound Blaster X-Fi Elite Pro Sound Card
* Ethernet: Onboard Marvell 88E8001 10/100/1000Base-T Gigabit
* Hard Disk-1&2: Seagate Barracuda 7200.9 ST3300622AS 300GB 7200 RPM SATA 3.0Gb/s Hard Drive x 2 (total 600GB) RAID-0
* Hard Disk-3: Seagate Barracuda 7200.9 ST3160812A 160GB 7200 RPM IDE Ultra ATA100
* DVD-R/RW: SONY White IDE DVD Burner Model DRU810A
* DVD-R/RW: SONY Silver USB 2.0/i.LINK External DVD Burner Model DRX810UL
* Card-Reader: Crucial CTR8ACSU2 8-in-1 USB 2.0 Aluminum Card Reader
* CASE: Thermaltake Tai-Chi VB5001SNA Black/ Silver Computer Case with liquid cooling
* LCD-TEMP: AeroCool GateWatch-SV Silver GateWatch with LCD display
* PSU: PC Power & Cooling 510 SLI-PFC 510W
* UPS: APC Back-UPS XS 1000 UPS, 1000 VA, 600 Watts
* OS: Microsoft Windows XP Media Center 2005 Rollup 2
* Speakers: Klipsch ProMedia 2.1

[snilloconator]

Nice set up dude! Some nice specs there! As for the wires I went down to the depot and purchased some 1" wire loom and went to work! Turned out pretty clean....

[DaJMasta]

Haven't posted mine in a bit....

First the desktop:



With a little cleaner wiring as I got a new PSU.


Then the lappy:



It's an eh shot, but get's the point across. It used to look like this:



And my new MiniITX box, custom built into an old DVD player:



And the internals:



These are my current rigs.

[aop]

Could someone with a little bit worse rig post some pictures. All those $2000+ rigs make me want to spend more money on my rig to achieve similar results. Not that my rig is bad (A64 [email protected], 2GB DDR, GF7800GT) but it isn't nearly as beautiful as those rigs.

[Shoey Peachew]

That is a tiny PSU. Pretty cool setup.

[moshpit]

My daughter's rig and home server and side view of temp non-functional guest rig to the far right (getting new PSU).


My rig with Darth Vader head for external SATA drive storage(2x 200Gb Caviar SE).


Wife's rig (same case as mine)

[DaJMasta]

That is a tiny PSU. Pretty cool setup.

PicoPSU FTW! I got the 120 watt version, even though my adapter is only good for 60W and the computer uses under 20W full blast

But it really comes in handy when the case you picked gives you no headroom above a standard stick of RAM.....

[ODT]

Could someone with a little bit worse rig post some pictures. All those $2000+ rigs make me want to spend more money on my rig to achieve similar results. Not that my rig is bad (A64 [email protected], 2GB DDR, GF7800GT) but it isn't nearly as beautiful as those rigs.

worse rig coming up...

pic1
pic2


PIII800@900
~900MB RAM
20GB Maxtor 5400rpm
ATI Radeon 32MB...
...and other hi-end stuff...

Regardless its old age it's still pretty much alive...not to mention that it was my main rig just before a year ago...

[ronbo613]

My trusty Intel workhorse in my sig:

An Asus A8N SLI, AMD X2, eVGA 7800GT rig I built for my friend:

[maverick777]

Finally finished my build.

[TRD Supra]

how loud is that case?

[Deeko1976]

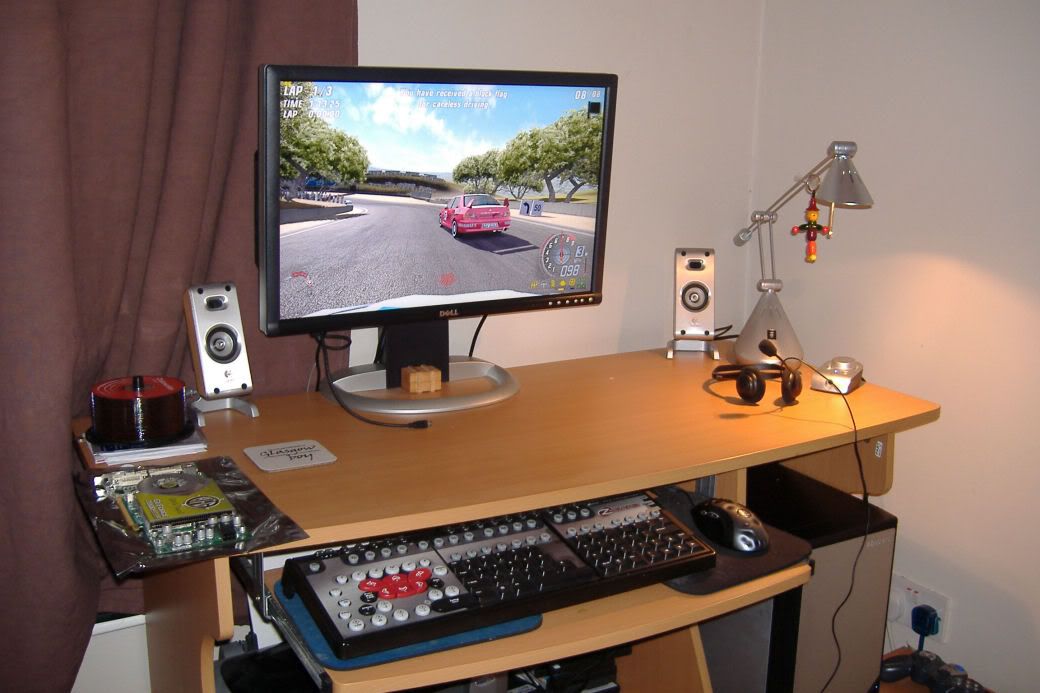

Gamer

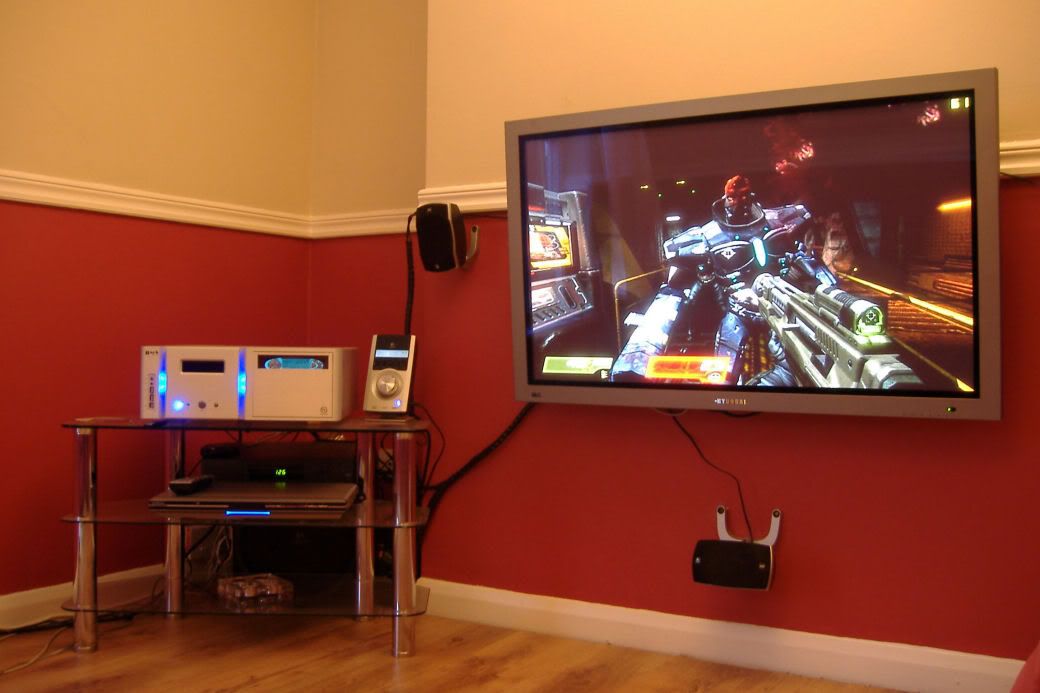

Media Center

[Greasy]

how loud is that case?

It's pretty quite. I just got mine up and running on Friday. I'm only using two of the side door fans though.

[faraday]

Here's mine...


iMac 20inch and Sony HX73 connected to my media center, to play RTS's and such...



here's the bigger view...

[SySTaX3r]

MY AMDTi HQ:



Recently installed the H2O loop.


EDIT: Finally decided to install VF900. Performance is pretty good. I didnt expect VF900 to be able to cool down the R580 core but despite its relatively small size it worked. I checked the core/heatsink contact area after applying some AS5 and I must say I have never seen a better contact, AS5 was evenly and smoothly spreaded out on both HSF/GPU. Top quality product.

[Payne3d]

My trusty Intel workhorse in my sig:

What kinda camera do you have?

[ckart]

I love that heatsink.

[Payne3d]

I love that heatsink.

I do too...wonder what it is.

[sama98b]

I do too...wonder what it is.

Zalman CNPS9500 AM2 Heatsink Support S754/S939/AM2 Socket

or

Zalman CNPS9500-Cu-LED Heatsink with 92mm Ultra Quiet Fan *For Intel Socket 775 and AMD Socket 754/939/940

[Payne3d]

Zalman CNPS9500 AM2 Heatsink Support S754/S939/AM2 Socket

or

Zalman CNPS9500-Cu-LED Heatsink with 92mm Ultra Quiet Fan *For Intel Socket 775 and AMD Socket 754/939/940

THose large fans, are they also Zalman?

[Payne3d]

The only half decent part of my PeeCee:

[markabuckley]

Heres my new Conroe build.

[zodiak]

Heres my new Conroe build.

Looks really nice, pretty good wire management. Glad to see I'm not the only wire freak. Two questions:

1. Did you spray paint the drive bays? They looks real nice. I was planning on spraying my entire inside with flat black.
2. How much did your temps drop at load with the AC Freezer 7 Pro? If you OC at all, whats your clocks and temp?

[markabuckley]

Thanks Zodiak.

Didn't spraypaint the drive-bays- they were already that colour.

I haven't used anything other than the Freezer Pro I'm afriad, so have nothing to compare against, but I seem to be getting about 32C Idle, 42C Load, at stock speeds.

Haven't tried overclocking yet ..... but that could be todays task

cheers, Mark.

[TRD Supra]

[Deeko1976]

[Samurai_crip]

My Very very AMD Setup

[PoWerBaR]

not yet ready (as can be seen easily, i think)...

[JonZ]

My temporary setup

[zodiak]

Thats a nice ass setup man. I'm loving that desk.

[JonZ]

That desk is falling appart lol. I bought it to Costco like 6-7 years ago. The screws emplacements are so ...screwed, that I had to replace some of them with stronger ones, plus some additionnal metalic L bonders.

The drawers on left are falling since the supports underneat has gone and I almost crashed my computer 3 years ago because the structure on the shelf (under the computer on this photo) has failed to support the books I had on them at that time

It just recently I removed the closet that was over the left module, because it was cluttering the desk and I needed space for the other monitors. That was cool because the closet was only holding with glue tapes, so there is no holes. I wish the keyboard center was bigger to able me to support the Wacom tablet and the Keyboard in the same time.

I need another desk for now, or just pimp my desk to support another couple of years

[zodiak]

You could always build one to your own specs. I thought about doing that a few times, but my new house doesn't have a room with enough space for what I'd want. I have my Wacom, scanner, etc all packed away because I don't have enough desk space currently. I was interested in Ikea's Jerker (lol) desk since its able to have add ons.. Little expensive though.

[gramboh]

I have a Jerker (the name is hilarious) it was cheap if I remember, $100 or so for the desk itself. It's good and spacious and I prefer a flat surface rather than stuff with lower KB/mouse tray etc. The only thing I don't like about it is that it isn't strong enough to support the Sony FW-900 (24in WS CRT) which weighs 95 pounds. I wanted that monitor so bad hehe.
